Selecting the right webbing material for your product development requires understanding specialized textile technologies. As manufacturers with extensive experience producing custom webbing solutions, we’ve helped countless brands integrate advanced patterned materials into their products across diverse industries.

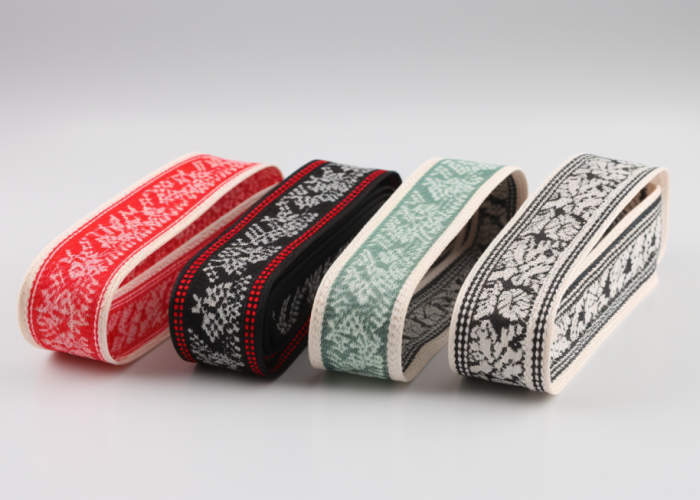

Polyester jacquard webbing is a type of woven webbing made from polyester, featuring patterns or logos woven directly into the structure. It combines high strength with long-lasting design, ideal for branding and decorative applications.
Discover how polyester jacquard webbing is made, how it compares to other materials, and explore customization options tailored to your product development needs.
Webbing manufacturing expert with 15+ years of experience helping product developers build high-performance straps for industrial, medical, and outdoor use.
Jacquard weaving technology creates complex patterns by using a specialized mechanical or electronic system that controls individual warp yarns. This “Jacquard” control system raises specific yarns during weaving, allowing weft threads to pass either over or under them, creating intricate designs that become an integral part of the webbing’s structure rather than just surface decoration.
The jacquard loom technology differentiates between two primary production methods: double jacquard and single jacquard weaving. Double jacquard weaving uses two separate sets of warp threads controlled by different jacquard heads, enabling more complex patterns with greater color combinations and finer detail. This method allows for intricate logos and multi-color designs that appear identical on both sides of the webbing.
Single jacquard weaving, while simpler and more cost-effective, produces patterns that appear primarily on one side with a simplified reverse pattern on the back. This method is ideal for designs where only one side will be visible or when budget considerations are primary. The manufacturing process is less complex, resulting in faster production times and reduced costs compared to double jacquard techniques.
The pattern complexity capabilities of jacquard technology extend to creating detailed logos, text, geometric patterns, and photorealistic images woven directly into the webbing. Modern electronic jacquard systems can control thousands of individual warp threads, allowing for exceptional detail and design flexibility that far exceeds what’s possible with standard webbing production methods.
The key physical properties of polyester jacquard webbing include exceptional strength, dimensional stability, and resistance to environmental factors. Polyester’s molecular structure provides tensile strength ratings ranging from 3,000-10,000 pounds depending on width and thickness, making it suitable for load-bearing applications while maintaining pattern integrity even under stress.
Dimensional stability is a standout characteristic of polyester jacquard webbing. When exposed to moisture, polyester webbing experiences minimal shrinkage or stretching (typically less than 1%), maintaining consistent dimensions even in challenging environmental conditions. This stability ensures patterns remain undistorted throughout the product’s lifespan, preserving brand identity and design elements.
Abrasion resistance gives polyester jacquard webbing significant durability advantages in high-friction applications. The material withstands repeated surface contact without pattern degradation or structural compromise, making it suitable for use in automotive harnesses, backpack straps, and other applications where consistent contact with abrasive surfaces occurs.
Water resistance is another valuable property of polyester jacquard webbing. The synthetic fibers naturally repel moisture, with a water absorption rate of less than 0.4%. This inherent water resistance helps maintain strength properties and pattern clarity even in wet conditions, while also providing resistance to mold and mildew—critical for outdoor applications where exposure to elements is unavoidable.
Jacquard webbing offers logo and pattern reproduction capabilities that include precise color matching to Pantone standards, fine detail rendering, and the ability to create complex gradient patterns. Unlike printed alternatives, these woven patterns become part of the structural integrity of the webbing, ensuring longevity throughout the product lifecycle.
Color reproduction capabilities in polyester jacquard webbing depend on the weaving method employed. Standard production can accommodate between 5-8 colors within a single pattern using double jacquard techniques. Color accuracy can be matched to industry-standard Pantone specifications within a 95% color match tolerance, though exact matching may require custom yarn development for specialty brand colors.
Resolution and detail limitations are determined by several factors, including webbing width and yarn density. Fine details can be reproduced down to approximately 1mm for standard webbing widths (25-50mm), with wider webbing allowing for more intricate pattern reproduction. Text legibility depends on size, with a minimum recommended height of 5mm for clear reproduction of lettering in most standard font styles.
Logo integration techniques involve converting vector graphics into specialized jacquard pattern files that determine which yarns will be raised or lowered during the weaving process. This translation requires specialized software and expertise to ensure brand elements maintain their proportions and clarity when woven into the relatively limited resolution of webbing compared to print media.
Industries and applications that benefit most from polyester jacquard webbing include automotive, sportswear, luggage, and safety equipment sectors. The combination of structural performance with custom branding capabilities makes this material particularly valuable for products where both functionality and brand identity must coexist without compromising either element.
Automotive applications utilize polyester jacquard webbing extensively in safety systems, interior trim, and functional components. The material’s ability to maintain structural integrity while incorporating manufacturer branding makes it ideal for seatbelts, tie-downs, and interior accent pieces where visual cohesion with vehicle design themes is desired while maintaining compliance with safety standards.
Consumer products from premium luggage to sporting equipment leverage jacquard webbing for both functional components and brand identification. The ability to integrate logos and decorative elements directly into load-bearing straps, handles, and attachment points allows manufacturers to maintain consistent brand presentation throughout the product while ensuring component performance meets durability requirements.
Industrial uses benefit from the combination of clear visual identification and functional performance. Safety harnesses, heavy-duty strapping, and specialized equipment utilize jacquard webbing where instant visual identification (through color coding or patterning) provides both practical benefits and strengthens brand recognition in professional environments.
Sportswear and accessories represent a significant application area, with jacquard webbing providing both structural elements and brand identification in products ranging from backpacks to athletic equipment. The material’s resistance to moisture, UV exposure, and physical wear makes it ideal for products used in demanding outdoor environments where both performance and aesthetics matter.
Customization options available for polyester jacquard webbing include pattern design, color selection, width specifications, edge finishing, and special treatments. Manufacturers can develop fully bespoke webbing solutions by combining these variables to meet specific product requirements while incorporating brand elements and functional performance characteristics.
Design capabilities and limitations depend primarily on the width and production method selected. Standard widths between 15mm and 100mm provide different canvases for pattern development, with wider webbing allowing more complex designs and finer detail reproduction. Double jacquard techniques permit more intricate patterns but at higher production costs compared to single jacquard methods.
Pattern and color combinations can be developed according to specific brand requirements, with standard production accommodating 5-8 distinct colors within a single pattern using polyester yarns in weights typically ranging from 150 to 300 denier. Special gradient effects are possible through specialized weaving techniques, though these may increase production complexity and minimum order quantities.
Special finishing options include heat-cutting for clean, sealed edges that prevent fraying, ultrasonic cutting for precision termination, and various edge binding techniques for enhanced durability in high-wear applications. Additional treatments such as water-repellent coatings, UV stabilizers, and antimicrobial finishes can be applied to enhance performance characteristics for specific environmental conditions.
Standard market specifications for polyester jacquard webbing include width ranges from 15mm to 100mm, thickness options between 0.8mm to 3.0mm, and tensile strength ratings from 3,000 to 10,000 pounds depending on construction. These standardized parameters provide a framework for designers while still allowing significant customization within established manufacturing capabilities.
Width and thickness ranges vary based on intended application, with narrower webbing (15-25mm) commonly used for lightweight applications and decorative elements, while wider options (50-100mm) provide greater load-bearing capacity and more canvas for complex pattern development. Standard production equipment accommodates these ranges without requiring specialized machinery, helping maintain cost efficiency.
Tensile strength specifications typically correlate with webbing width and thickness, with standard 50mm polyester jacquard webbing providing approximately 5,000 pounds of breaking strength. This exceeds the requirements for most consumer and light industrial applications while maintaining the flexibility needed for product integration.
Material composition standards for polyester jacquard webbing typically specify high-tenacity polyester yarns with consistent denier ratings to ensure uniform performance characteristics. Industrial applications often require compliance with specific standards ranging from automotive safety specifications to consumer product durability testing, with certification available to verify performance claims.
Polyester jacquard webbing is superior to alternative materials because it combines exceptional durability with advanced aesthetic capabilities. Unlike printed webbing that can fade or peel, jacquard patterns are woven into the structural fabric, maintaining brand identity and design elements throughout the product lifecycle while providing consistent performance characteristics.
Durability advantages stem from polyester’s inherent resistance to environmental factors including UV exposure, moisture, and temperature fluctuations. When compared to natural fiber alternatives, polyester jacquard webbing demonstrates significantly longer service life, with minimal strength degradation even after extended environmental exposure, making it ideal for products requiring long-term performance reliability.
Aesthetic benefits include the ability to create complex patterns that become an integral part of the webbing structure rather than surface applications that can wear away. This integration of design elements ensures consistent brand presentation throughout the product lifecycle, maintaining visual impact even in high-wear applications where printed alternatives would show significant degradation.
Performance characteristics of polyester jacquard webbing include excellent strength-to-weight ratios, low moisture absorption, and resistance to common environmental contaminants. These properties make it particularly valuable in applications where weight considerations are important but visual branding cannot be compromised, providing an ideal balance between functional requirements and aesthetic presentation.
Cost-effectiveness comparisons reveal that while initial production costs may be higher than simple webbing alternatives, the extended service life and maintained appearance of polyester jacquard webbing often result in lower lifetime costs for the end product. This longevity ensures brand elements remain intact throughout the product lifecycle, enhancing perceived quality and supporting premium positioning in competitive markets.
Polyester jacquard webbing combines structural performance with sophisticated branding capabilities, making it ideal for product developers seeking both functionality and visual distinction. Its integrated patterns maintain integrity throughout product lifecycles, offering superior durability compared to printed alternatives while delivering precision logo reproduction that strengthens brand identity across applications.
Yes, polyester jacquard webbing can be fully customized with brand logos, text, and complex patterns woven directly into the material’s structure. Modern jacquard technology allows for precise pattern control, multiple color combinations, and fine detail reproduction, with designs becoming an integral part of the webbing rather than surface applications.
The best practices for adding patterns to jacquard webbing include using vector-based designs, limiting detail size to minimum 1mm features, selecting contrasting colors for visual clarity, and considering the webbing width as your design canvas. For optimal results, maintain text height above 5mm and provide Pantone color references for accurate reproduction.

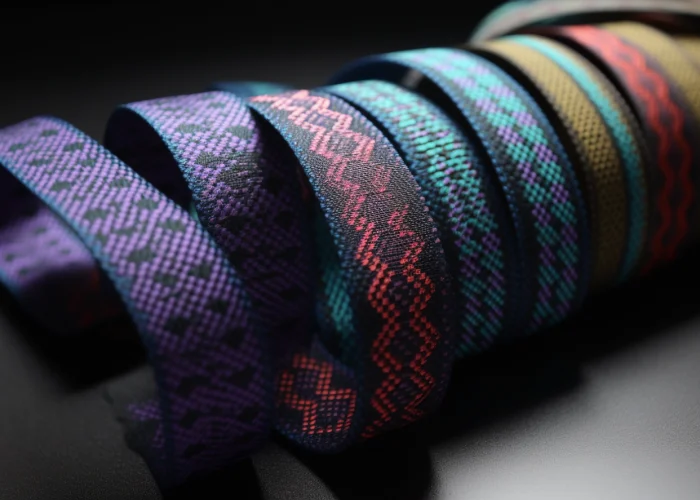

The main custom pattern types for jacquard webbing include logo reproductions, text integration, geometric patterns, gradients, and photorealistic designs. Pattern selection should consider viewing distance, application environment, and brand guidelines, with complex designs best suited for wider webbing (50mm+) and simpler patterns effective on narrower options.
Polyester jacquard webbing is significantly more durable than most alternatives because patterns are woven into the structure rather than printed on the surface. It maintains color integrity and pattern definition after extensive UV exposure, abrasion, and moisture contact, with a typical service life 30-40% longer than printed webbing under identical conditions.
Key colors available for polyester jacquard webbing include standard inventory colors (black, white, red, blue, green) and custom-matched colors using Pantone references with 95% accuracy. High-contrast color combinations produce the most visually effective designs, with 5-8 colors typically possible within a single pattern depending on design complexity.
Polyester jacquard webbing is superior because it integrates patterns within the webbing structure rather than applying them to the surface, ensuring designs remain intact throughout product lifecycle. It combines exceptional durability, dimensional stability, and pattern integrity with high tensile strength (3,000-10,000 pounds) and resistance to environmental factors.
