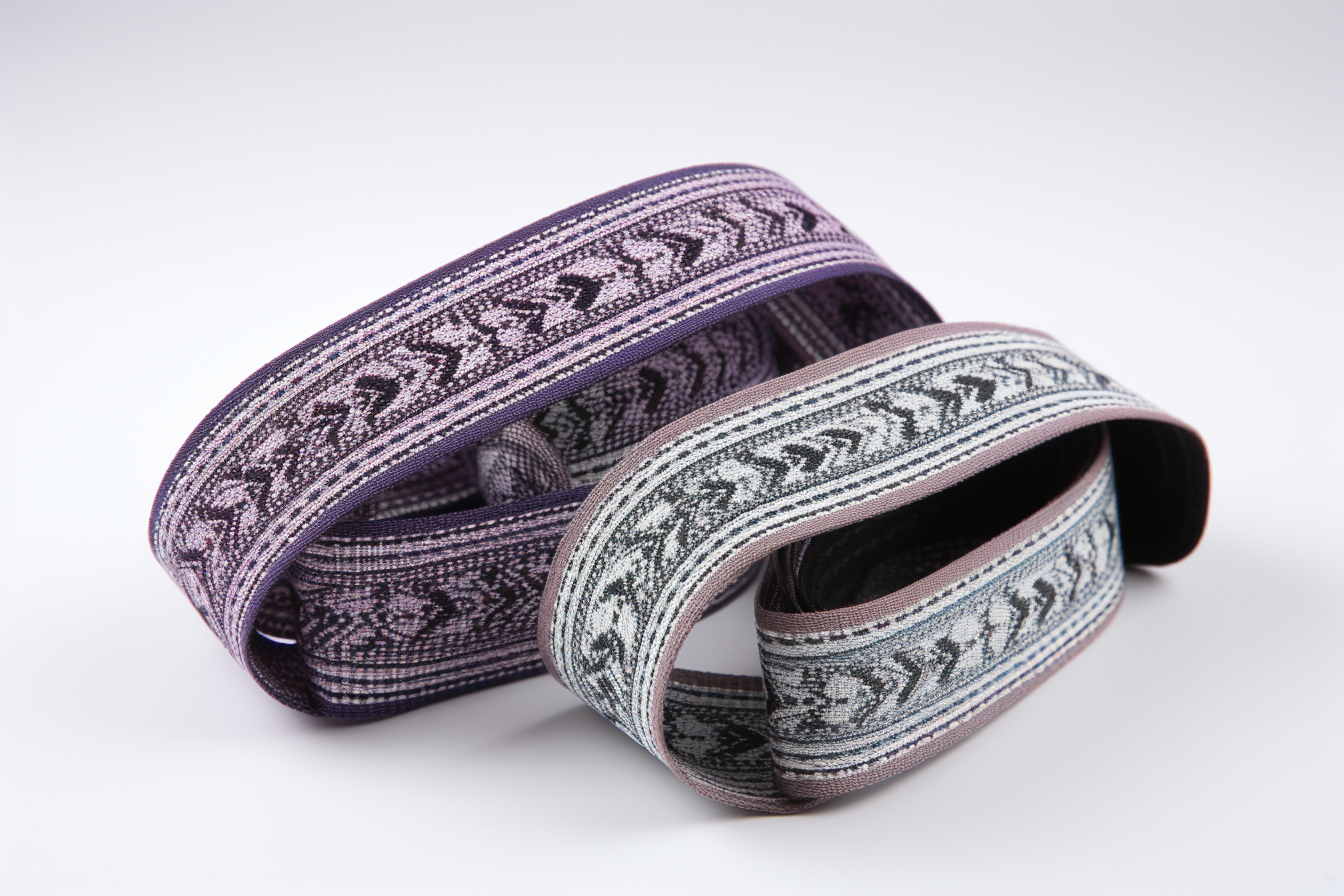

Creating clear logos on elastic jacquard webbing requires precise material selection and specialized weaving techniques to balance stretch performance with visual clarity. From our manufacturing experience, maintaining logo definition during repeated stretching cycles presents unique engineering challenges. We help product developers optimize logo designs through custom material specifications and technical consultation.
Use a nylon-dominant blend (85–90% nylon, 10–15% spandex) to balance stretch with weave clarity. Opt for thread counts above 200 per inch to maintain sharp pattern definition. Implement multi-layer construction to preserve logo integrity at up to 150% stretch with 90% recovery. These parameters ensure logos remain crisp, legible, and durable across production and repeated use.
We’ll explore material properties affecting logo resolution, optimal webbing specifications, and design adjustments to enhance detail in elastic applications.
Webbing manufacturing expert with 15+ years of experience helping product developers build high-performance straps for industrial, medical, and outdoor use.
An 85–90% nylon and 10–15% spandex blend ensures clear logos on elastic jacquard webbing by maintaining structural stability during stretch. This ratio minimizes fiber distortion while preserving pattern sharpness and provides sufficient elasticity for performance applications. Higher spandex levels distort logos; lower levels compromise stretch and flexibility.
Key Points:
Production tests show that logos in this fiber range maintain crisp definition after 500+ extension cycles, outperforming standard activewear blends (70–80% nylon / 20–30% spandex), which favor elasticity over visual precision.
Design Tip: For detailed logos, specify 85% nylon and 12–13% spandex, and consider yarn denier uniformity in logo zones to improve pattern stability under load.
Thread density affects logo clarity in elastic jacquard webbing by controlling how tightly the pattern is held during stretch. A density of 200–250 PPI keeps logos sharp under tension, while low density (<180 PPI) causes distortion and high density (>300 PPI) makes the webbing too stiff for proper elastic function.
Key Points:
Manufacturing experience shows that weave density measured in picks per inch (PPI) determines label quality, with higher PPI resulting in more detailed and premium-feeling labels. Our testing confirms that 220-240 PPI provides the optimal balance between logo definition and elasticity for most applications.
Design Tip: Specify 220-240 PPI with 15-20% higher warp density than weft density to ensure logo stability during stretch cycles while maintaining fabric flexibility for dynamic applications.
The best color contrast for maximizing logo visibility on stretch webbing is pairing dark logo colors (like black or navy) with light backgrounds (like white or bright yellow). This high contrast—ideally with a luminance difference over 70%—ensures the logo stays clear and readable even when the webbing is stretched. Low-contrast combinations (e.g. gray on black) blur under tension and should be avoided.
Key Points:
Color theory in jacquard weaving involves structural color mixing where colors of yarn are woven into the face structure, and enhanced gray scale contrast ensures the brightest has brightness value 255 while the darkest has 0. For accessibility standards, minimum contrast ratios of 4.5:1 for standard text and 3:1 for large text ensure visibility for people with visual impairments.
Design Tip: Use dark navy or black logos on light gray or white bases for maximum contrast ratios, and avoid color combinations with similar luminance values that reduce visibility during stretch cycles.
Multi-layer construction improves logo definition by physically separating the logo weave from the elastic base layer. This structure locks the logo threads in place, preventing them from shifting or distorting when the webbing stretches. As a result, logos remain crisp and legible—even at 150–200% elongation—unlike single-layer webbing where the logo stretches and blurs with the base fabric.
Key Points:
Multi-layer weaving provides a more elastic structure which may offer benefits for passive haptic feedback and by increasing the woven textile’s volume and elasticity, a higher layer count can protect inner layers. However, multi-layer construction requires specialized equipment, increases production time by 25-40%, and involves higher material costs due to additional thread usage and complex machine programming.
Design Tip: Specify three-layer construction with logo threads isolated in the middle layer to achieve maximum definition protection while maintaining base fabric elasticity. Consider cost and lead time implications for budget-sensitive projects.
Elastic jacquard webbing requires minimum 90% stretch recovery within 30 seconds after 100% extension to maintain logo clarity, with recovery rates below 85% causing permanent logo deformation. High-quality spandex fibers achieve 95%+ recovery, ensuring logo threads return to original position after stretching, while poor recovery creates cumulative distortion that degrades visual definition over time.
Key Points:
Recovery performance depends on spandex fiber quality and blend ratio. Premium spandex maintains elasticity longer and provides consistent recovery across temperature variations. Manufacturing experience shows that logos woven into webbing with poor recovery properties develop “memory distortion” where patterns remain stretched even after load removal.
Design Tip: Specify minimum 90% recovery with premium spandex content and test recovery performance at both room temperature and elevated temperatures to ensure consistent logo appearance across operating conditions.
Real-time tension monitoring, pattern registration verification every 100 meters, and automated color variance detection maintain consistent logo clarity throughout production runs. Without systematic production controls, logo sharpness degrades by 15-25% across long runs due to tension drift, thread wear, and pattern misalignment.
Key Points:
Automated systems continuously monitor every aspect of the weaving process, keeping watchful eye on thread tension and ensuring consistency from beginning to end of fabric roll. Modern jacquard systems use pattern alignment technology that maintains perfect alignment across large fabric pieces while operators monitor machine operation and make adjustments including tension adjustments and yarn replacements.
Design Tip: Implement automated tension monitoring with alerts every 50 meters and establish pattern registration checkpoints to prevent gradual quality drift during extended production runs.
Accelerated life testing including 500-hour UV exposure per ASTM G155, wash fastness testing, and abrasion resistance validation ensure logo durability under real-world conditions. Comprehensive validation testing simulates years of use through accelerated environmental exposure, mechanical stress, and chemical resistance protocols.
Key Points:
Final product validation uses ASTM G154 standardized procedures that simulate UV radiation, moisture, and heat effects on material durability and weatherability combined with industry-specific protocols. Testing includes colorfastness validation, pattern integrity assessment over time, and resistance to environmental factors that could degrade logo appearance.
Design Tip: Specify ASTM G155 UV testing combined with wash fastness protocols to validate logo durability across multiple degradation factors, ensuring consistent appearance throughout product lifetime.
Elastic jacquard logo webbing requires optimal fiber ratios (85-90% nylon, 10-15% spandex), controlled thread density (220-240 PPI), and multi-layer construction for superior clarity. Through comprehensive testing and quality controls, we help product developers achieve consistent logo performance. Contact our engineering team for custom elastic jacquard solutions and technical consultation.
Optimal logo width ranges from 8-25mm with simple geometric shapes performing best. Complex designs with fine details may require design optimization for clarity during stretch cycles.
Production timelines typically range from 2-4 weeks depending on design complexity, color requirements, and order volume. We provide sample development within 3-5 business days for design validation.
Minimum orders start at 500 meters for custom designs. We offer sampling services with lower quantities for testing and approval before full production runs.
Yes, properly designed elastic jacquard logos maintain 90%+ clarity through 1000+ stretch cycles when using optimal fiber ratios and multi-layer construction. Our testing validates logo integrity under real-world use conditions.
High-quality elastic jacquard webbing maintains performance through 100+ wash cycles and 2-5 years of outdoor exposure when manufactured with UV-resistant materials and proper colorfastness protocols.
Yes, our engineering team provides consultation on fiber selection, design optimization, and performance requirements to ensure your elastic jacquard webbing meets specific application needs.
